If only there was a single dimensioning system that could measure anything from a diamond wedding ring to an airplane wing, plus make it affordable to everyone running a distribution center, but while we're waiting for this "super-cuber" to be concocted, we have eight CubiScan systems that are unique and customizable in their own powerful way.

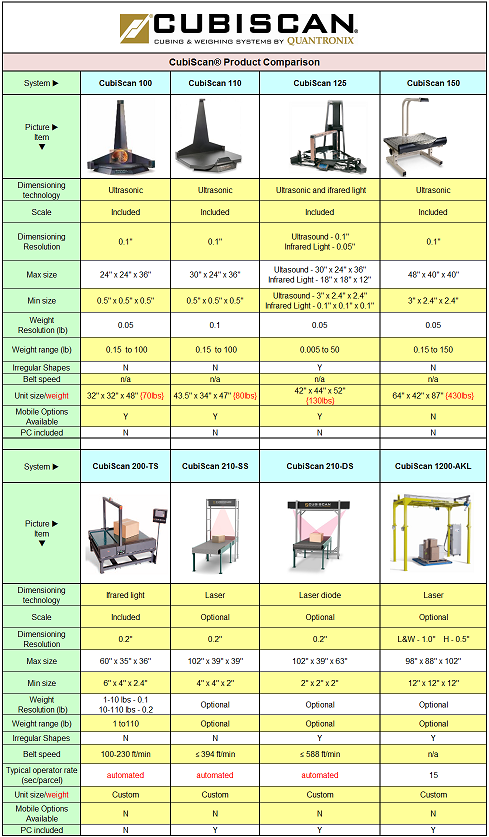

Below is a quick summary of the specifications for all our CubiScan dimensioning and weighing systems.
In summary, the CubiScan 100, 110, 125 and 150 are considered "static" measuring devices, because they measure and weigh items in a fixed, or stationary position. If you'll be undertaking a large slotting project in the near future, one of these static systems would be a great option. Select rental units are also available upon request.
The CubiScan 200-TS, 210-SS, and 210-DS are considered "in-motion" systems and can automatically measure and weigh boxes, or irregular items, in converyorized applications.
Finally, the CubiScan-1200 AKL is also a "static" system, but is slightly more unique than the other systems previously mentioned. It was mainly designed to measure pallets, but it can measure smaller to extremely large boxes or crates. The 1200-AKL has been well received in a miriad of industries for its abilities to precisely measure larger, irregular-shaped items such as, 14 foot engine blocks, oversized carpet rolls, automobiles, farming equipment, plus measure ten pallets at a time with one pass of the 1200-AKL.

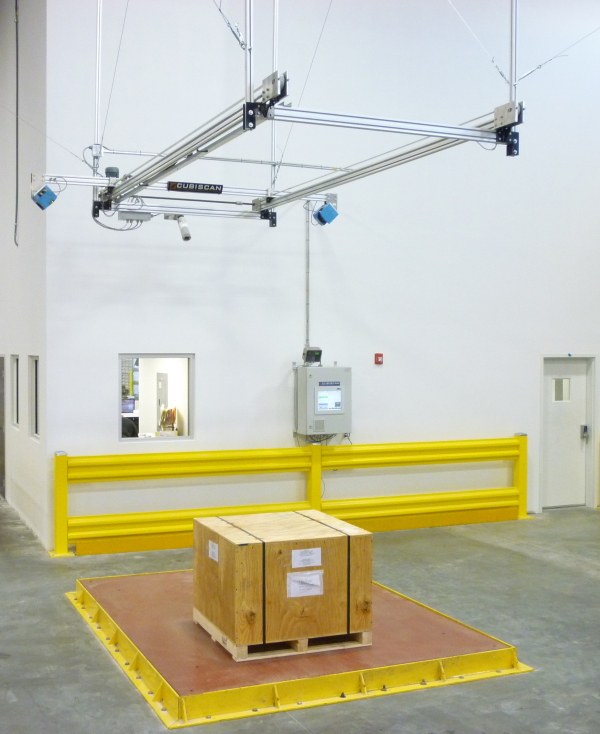

Actual CubiScan 1200-AKL installation
